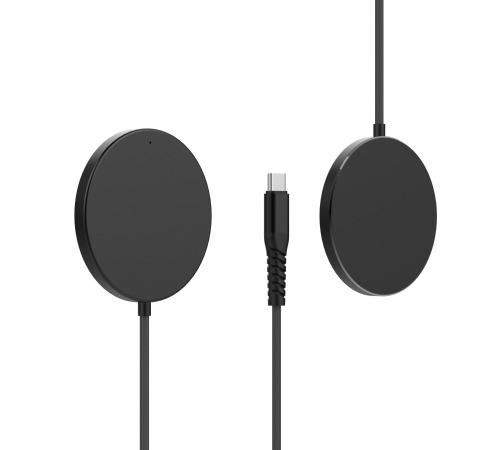

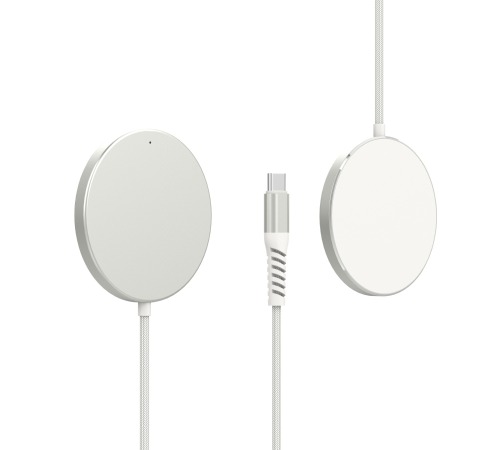

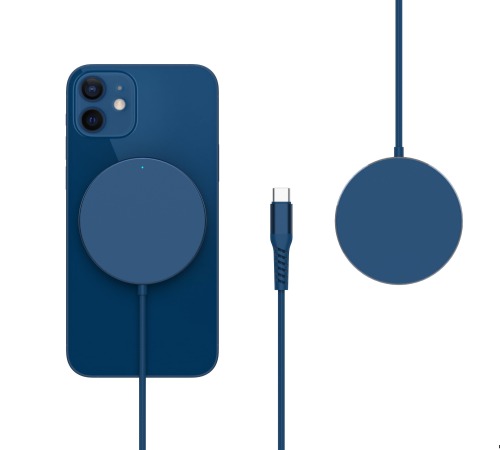

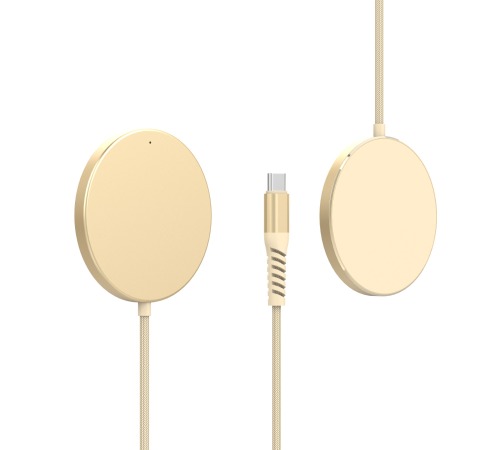

1. This magnetic wireless charger is with built-in USB C type charging cable, which the charging efficiency can reach up to 82%; it has good compatibility and has the function of LED lights to indicate status. With a mobile phone with wireless fast charging function, it can enter 9V/12V fast charging mode (requires a charger that supports PD/QC2.0 and above).
Rated input: DC 5V2A/9V2A/12V1.67A
Rated output: 5W (5V/9V/12V input) /7.5W (9V/12V input)/10W (9V/12V input) /15W (12V input).
2. Maximum support for QI 15W fast charging protocol, Sam sung 10W, Apple 7.5W fast charging, and other fast charging mobile phones.
3. Magnetic force (suction): More than 0.7kg
4. Specification:
| Parameter |
Symbol |
Rated value |
Unit |
| Working temperature |
Ta |
-10℃ to +40℃ |
℃ |
| Storage temperature |
Tstg |
0℃ to +40℃ |
℃ |
| Storage moisture |
Tstr |
Less than 95% |
RH |
| Supply voltage |
Vcc |
13 |
V |
| Supply current |
I |
2 |
A |
5. Other Parameter:
| Magnet size |
45*1mm |
| Coil type |
Qi A11 standard single layer coil |
6. LED Indicator:
| Status |
Power connected |
Charging |
Fully charged |
FOD |
DPM |
Error |
Not entering fast charging mode |
| LED Color |
All lights out |
Blue light breathing |
Lights out |
Red and blue light flashes alternately |
/ |
Red and blue light flashes alternately |
/ |
