This product is made with a type-c female input, the charging efficiency can reach up to 82%; With a mobile phone with wireless fast charging function, it can enter 9V/12V fast charging mode (requires a charger that supports 20W PD/QC2.0 or above).
Rated input: DC 5V2A/9V2A/12V1.67A
Rated output: 5W (5V/9V/12V input) /7.5W (9V/12V input)/10W (9V/12V input) /15W (12V input).
Maximum QI Output: 15W fast charging protocol, 10W for Sam-sung mobile phones, 7.5W fast charging for Apple device, and other fast charging mobile phones.

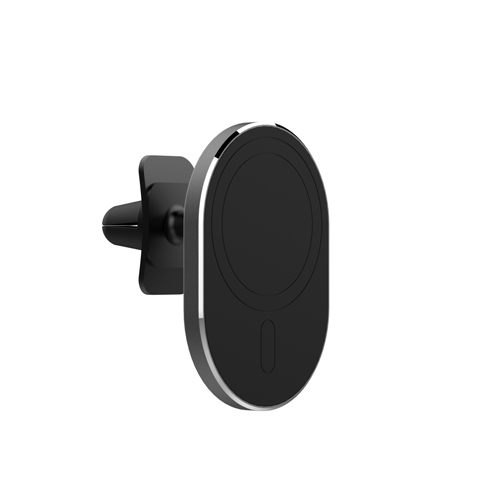

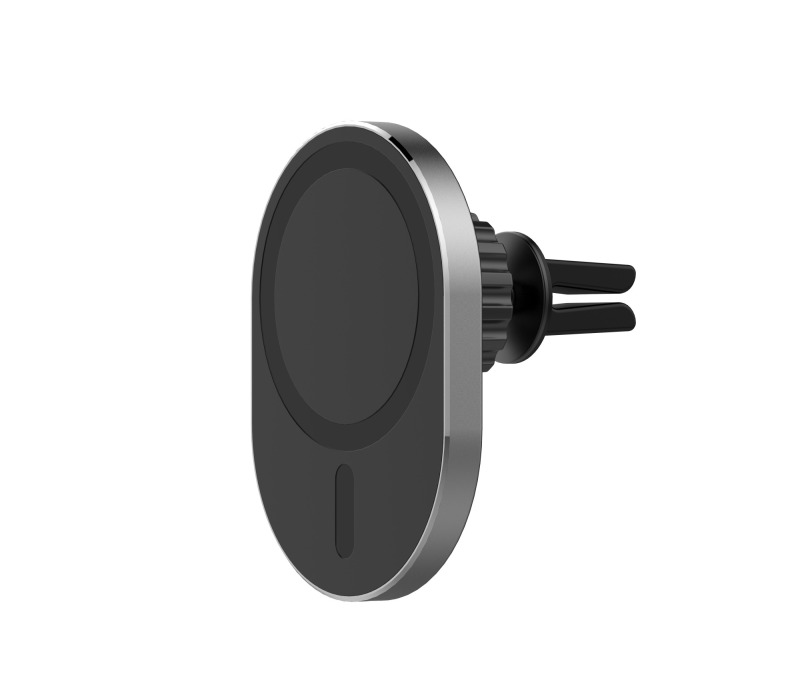

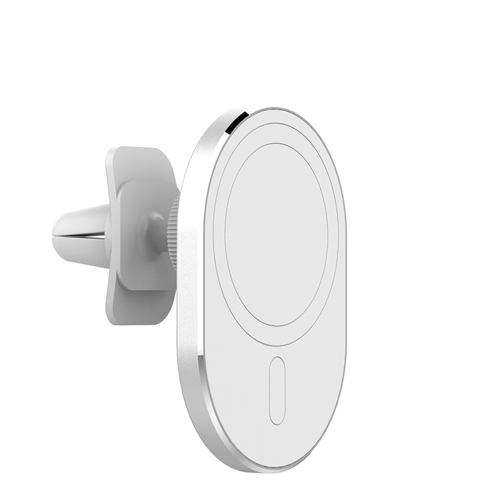

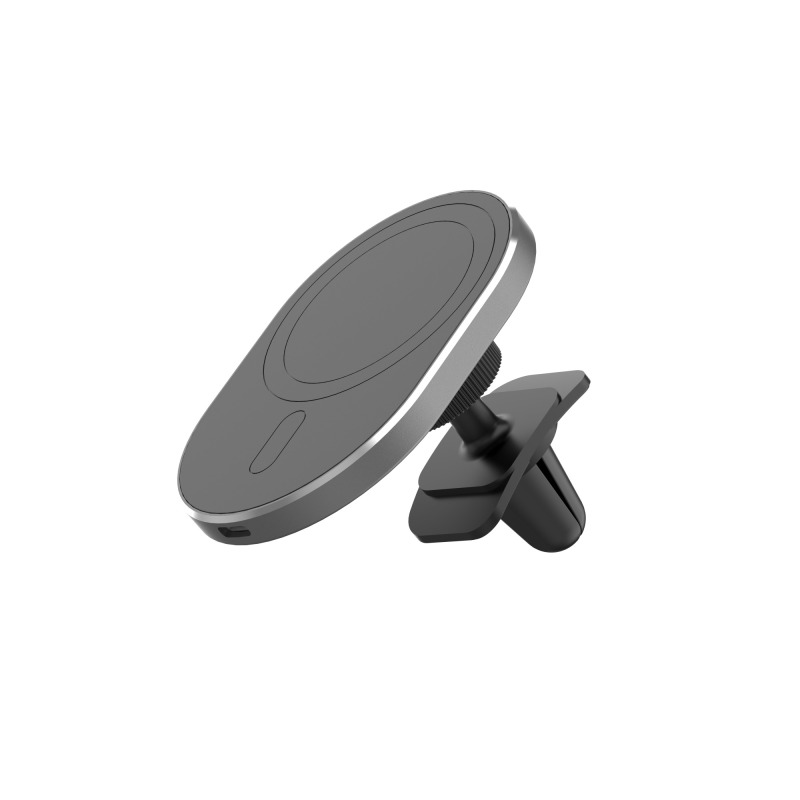

Color: Black or White
PRODUCT INTRODUCTION
This product is type-c input, charging efficiency up to 82%;Good compatibility.With a mobile phone with wireless fast charging function, it can enter into 9V/12V fast charging mode (a charger supporting PD/QC2.0 or above is required).
Rated input：DC 5V2A/9V2A/12V1.67A
Rated output：5W（5V/9V/12V input）/7.5W（9V/12V input）/10W（9V/12V input） /15W（12V input）。
- The maximum support QI 15W fast charging protocol, support Sam sung 10W, Apple 7.5W fast charging, and other parts of the fast charging mobile phone.
- Specification parameter
3.1 Max rating value
| parameter |
Symbol |
Rating value |
unit |
| Operating temperature |
Ta |
-10 - +40 |
°C |
| Storage temperature |
Tstg |
0 - +40 |
°C |
| Storage humidity |
Tstr |
< 95% |
RH |
| The power supply voltage |
Vcc |
14 |
V |
| The power supply current |
I |
2 |
A |
3.2 Rated parameter
| |
Test conditions |
rating |
Min rating |
Max rating |
unit |
| Power consumption in standby mode |
Vcc=5V |
12 |
11 |
15 |
mW |
| Working frequency |
Adjust load and distance |
/ |
110 |
205 |
KHz |
| Transmission efficiency |
|
75 |
60 |
82 |
% |
| The output voltage |
5W output |
5 |
4 |
6 |
V |
| The output voltage |
7.5W output-with PD/QC2.0+adapter（output power≥15W） |
7.5 |
5 |
10 |
V |
| The output voltage |
10W output-with PD/QC2.0+adapter（output power≥15W） |
9 |
5 |
10 |
V |
| The output voltage |
15W output-with PD/QC2.0+adapter（output power≥20W） |
12 |
9 |
14 |
V |
| Output power-5W |
Max current output |
5 |
4 |
7 |
W |
| Output power -7.5W |
Max current output |
7.5 |
6 |
9 |
W |
| Output power -10W |
Max current output |
10 |
8 |
12 |
W |
| Output power -15W |
Max current output |
15 |
12 |
18 |
W |
| Working distance |
Max current output |
5 |
3 |
8 |
mm |
| temperature protection |
Temperature on PCB board |
70 |
60 |
80 |
°C |
Test condition:environment temperture25°C 。
3.3：other parameter
| Magnetic size |
45*1mm |
| The type of the coil |
- Qi A11 Standard single layer coil
|
More than 1kg
Dimension:
