Product Function：

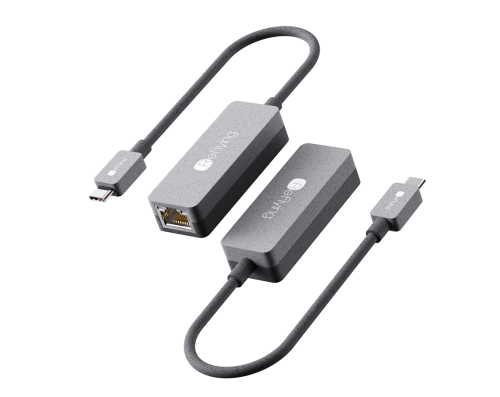

This is an Adapter for Macbook and other computers with Type-C interface, which extends the Type-C interface into Ethernet. It satisfies the user's application to the computer wired network, and improves the stability of the Internet and the experience of the Internet. ABS+TPE design is used in appearance.
Main function:
l Extended Ethernet；
l Internet speed：1000M
l Small and Thin
Dimension
Size: 24*64 *15 MM， Cable Length: 180MM
Specification & Parameter
|
Basic Parameter |
|
|
Upstream |
Type-C Male * 1 |
|
Upstream |
Ethernet *1 |
|
Speed Rate |
1000M |
|
Electrical Parameter |
|
|
Oprating Voltage |
5-20V |
|
Quiescent Current |
≤10MA |
|
ESD Protection |
±8kV (Air Discharge) & ±4kV (Contact Discharge) |
|
Mechanical Parameter |
|
|
Size |
24*64 *15 MM |
|
Cable Length |
180MM |
|
Weight |
25g |
|
Enviromental Parameter |
|
|
operating temperature |
0 ℃ to +45℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃ to +80℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
How to use
1. Connect the laptop to the USB3.1 Type-C port of the product.
2. Connect the RJ45 port to the device to realize the wired Internet access function
Connection Diagram：
Compatibility Description
1. Device Compatibility: MacBook, Mi Laptop, Sam sung Laptop, Dell Laptop, Asus laptop, Huawei Laptop, Lenovo Laptop, Google Laptop, etc.
2. System Compatibility: MAC OS,Windows XP/Vista/7/8/10, Google Chrome OS, Linux
Application Scenarios
Suitable for Office, conference and other applications that need stable network environment.
Packaging
Neutral Packing
