1. Product Features：
This is a six-in-two-out multi-function Adapter, suitable for Macbook and other computers with Type-C interface, mobile phones and other products. Extend the Type-C interface to USB-A data signals and HDMI video signals, and also support 60W PD power supply. It can meet the user's extended application of HDMI video interface and USB and other data interfaces, and supports dual Type-C blind plug function. Appearance adopts aluminum profile shell, independent TPE+FPC wire design.
Its main functions are as follows：
l HDMI output, support 4K/60Hz;
l USB-A *3, support 5G transmission rate;
l Support dual Type-C blind plug function；
l Support PD60W ;
l Aluminum profile compact design；
lIndependent TPE+FPC wire design；

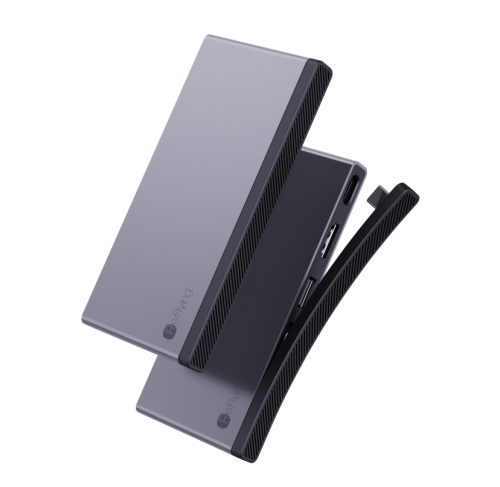

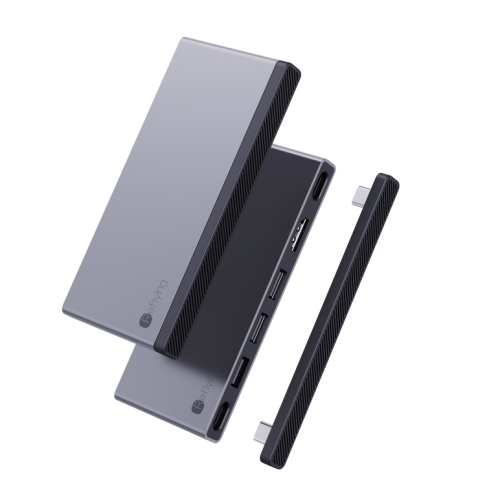

Image and Dimensions：
Dimensions: 120*55 *12 MM， Length of cable: 120MM；
1．Specifications：
|
Basic parameters |
|
|
Uplink interface |
Type-C Male * 2 （Blind plugging） |
|
Downlink interface |
HDMI Female*1 ,4K/60Hz |
|
USB-A *3 ，5G |
|
|
PD * 1 ，60W |
|
|
Electrical parameters |
|
|
Operating Voltage |
5-20V |
|
Quiescent Current |
≤50MA |
|
Electrostatic protection |
±8kV (air discharge) & ±4kV (contact discharge) |
|
Mechanical parameters |
|
|
Dimension |
120*55 *12 MM |
|
Cable length |
120MM |
|
Weight |
90g |
|
Environmental parameters |
|
|
Operating temperature |
0 ℃ to +45℃ |
|
Operating humidity |
10% to 85 % RH (no condensation) |
|
Storage temperature |
-10℃ to +80℃ |
|
Storage humidity |
5% to 90 % RH (no condensation) |
3. Instructions:
1. Use a separate Type-C cable to connect the laptop to any USB3.1 Type-C port of this product.
2. Connect the HDMI port to the HDMI interface of the display device through an HDMI cable, and the display device can correctly display the screen information of the laptop;
3. Connect the USB devices (drives, hard disk, keyboard and mouse, etc.) to the USB-A interface of this product respectively, which can quickly read and use related devices;
4. Connect the PD power supply to the spare Type-C interface of this product, which can supply power to the laptop;
3. Connection Diagram：
4. Description of Compatibility：
1.Device Compatibility: Mac Book, Xiaomi Notebook, Sam sung Notebook, Dell Notebook, Asus Notebook, Huawei Notebook, Lenovo Notebook, Google Notebook, Sam sung S series mobile phone, Huawei Mate series mobile phone, Huawei P series mobile phone and other mobile phones with full-featured Typc -C interface mobile phone.
2.System compatibility：MAC OS,Windows XP/Vista/7/8/10； Google Chrome OS； Linux.
5．Application scenarios：
All USB high-speed expansion applications such as office, conference, game entertainment, industrial equipment, etc.
6．Accessories and Packaging：
Neutral packing
7．Attentions：
1.Different notebook computers have different output currents. Please pay attention to confirm the output current of the notebook when using this product with a device with a high current load.
2. Use the original computer power supply or the power supply with PD function to power the device.
